Bionic Butterfly Flapping-Wing Flyer: Engineering Logic for Indoor Events

Learn how a bionic butterfly flyer uses a motor, crank linkage, flexible wings, and unsteady aerodynamics to create a lifelike indoor event flight effect.

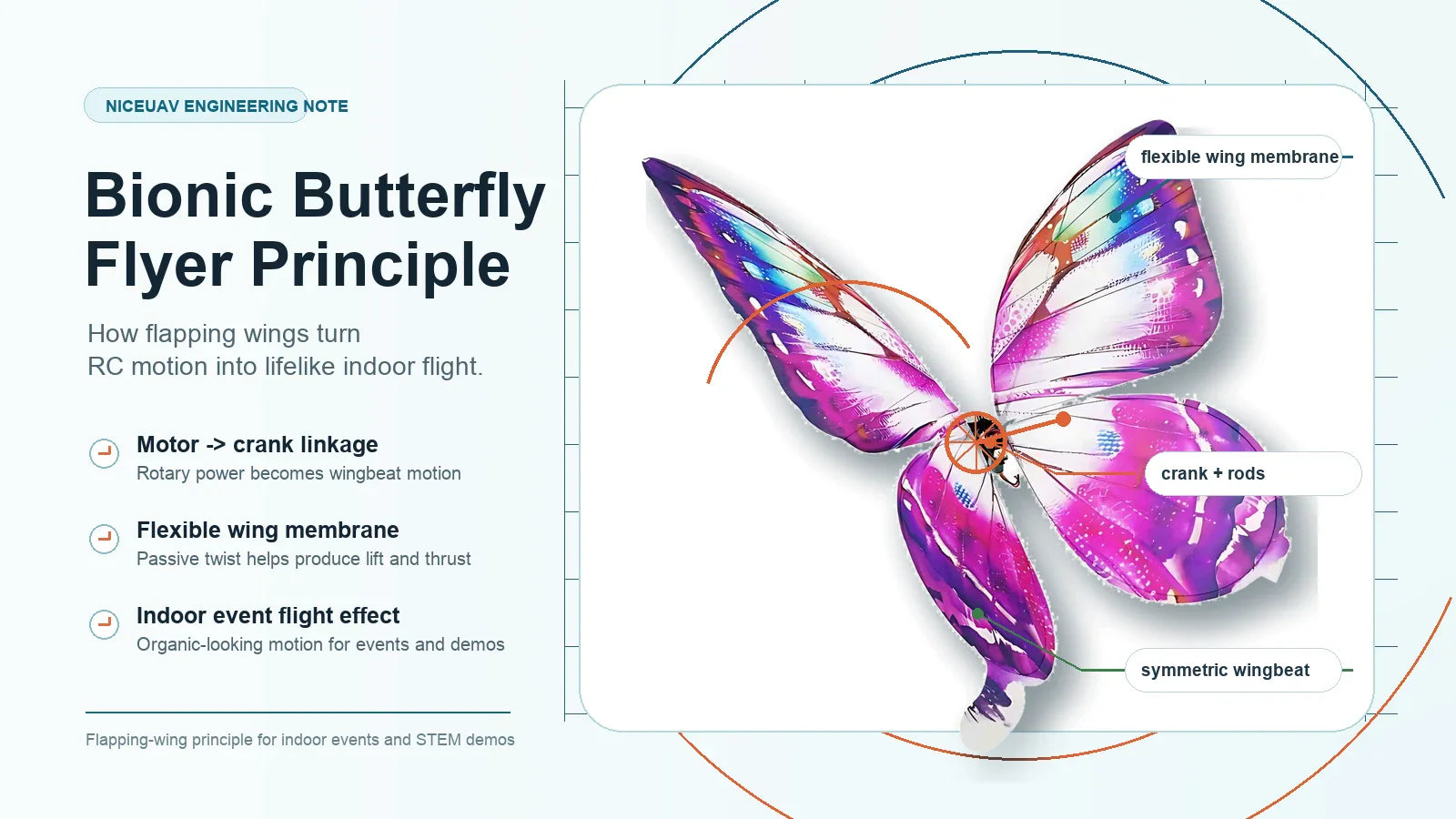

Bionic butterfly flyer cover showing flapping-wing principle, motor linkage, flexible wing membrane, and symmetric wingbeat motion

A bionic butterfly flyer does not create its effect by hiding a conventional drone inside a butterfly shape. Its appeal comes from the motion itself: wide, flexible wings move through the air, the body stays light, and the aircraft looks closer to a living object than a mechanical prop.

That is why this type of bionic butterfly flyer fits a different job from a standard multirotor. It is not designed for mapping, inspection, payload work, or uncontrolled outdoor conditions. It is designed for controlled indoor demonstrations where the audience can see the wingbeat and remember the scene.

This guide explains the engineering logic behind a flapping-wing butterfly drone style flyer: how motor rotation becomes wing motion, why symmetry matters, how flexible wings interact with air, and what event teams should check before using one in a wedding, exhibition, classroom, showroom, or brand activation.

From Electrical Power to Flapping Motion A simplified power chain diagram showing how battery power drives the motor, gearbox, crank, rods, wing root rockers, and flexible wings of a bionic butterfly flyer. From Electrical Power to Flapping Motion Conceptual chain for a bionic butterfly flapping-wing flyer. Not a product CAD drawing. Battery + receiver Motor + gearbox Eccentric crank Rods connecting links Wing root rockers Wing spars + flexible membrane Flapping motion Key idea: the wings are the moving flight surface, not decoration.
From electrical power to flapping motion: a conceptual chain for a bionic butterfly flapping-wing flyer.

From Nature-Inspired Motion to a Practical RC Flyer

Birds, butterflies, moths, and many insects do not fly with propellers. They use repeated wing motion to build a changing balance between lift, thrust, drag, and body attitude. Engineers describe this family of designs as flapping-wing aircraft or ornithopters.

For a product like a bionic butterfly RC flyer, the goal is not to copy every detail of biological flight. A real butterfly uses muscles, flexible wing veins, sensory feedback, and complex body motion. A small RC flyer uses a much simpler electromechanical system. The shared idea is the visible wingbeat: wings are not decoration; they are the main motion element.

This difference matters for event use. A multirotor can hover precisely, but it often reads as a machine. A flapping butterfly flyer moves more gently. The wing surface, pattern, and slow pass across the audience become part of the performance language.

For current product options, NiceUAV keeps the standard bionic butterfly flapping-wing RC flyer and the lighted RC butterfly flyer as separate buying paths. Specifications, package contents, and lighting options can vary by version, so they should be confirmed before an event order.

What Is Inside a Bionic Butterfly Flyer?

A typical flapping-wing butterfly flyer includes a lightweight central body, a small battery, a receiver or control board, a motor, reduction gearing, a crank or linkage, wing root supports, wing spars, and a pair of flexible wing membranes. Some versions add LEDs, printed patterns, gift packaging, spare wings, or project-specific customization.

The large wing surface has two jobs. It creates visual presence, and it participates in the aerodynamic process. If the wing is too stiff, the motion can look mechanical and require more power. If it is too soft, the flyer may become difficult to trim. The useful design window is a balance among weight, stiffness, flexibility, wing area, and the drive mechanism.

The central fuselage is also more than a shell. It holds the parts that set the wingbeat in motion. The motor produces continuous rotation, but the wings need repeated up-and-down motion. A transmission system is therefore needed between the motor and wing roots.

How Motor Rotation Becomes Wingbeat

The basic power path can be summarized like this:

Battery and receiver -> motor -> reduction gear -> eccentric crank -> connecting rods -> wing root rockers -> wing spars and flexible wing membranes -> repeated wingbeat.

Animated flapping-wing mechanism for a bionic butterfly flyer A no-script SVG animation showing the battery, motor, gearbox, crank, connecting rods, wing roots, flexible wings, lift, forward thrust, and wake interaction. 1. Power and transmission path Battery / receiver -> motor + gearbox -> crank -> connecting rods -> wing roots -> wing spars 2. Aerodynamic result Changing wing motion creates lift and thrust. Battery + receiver Motor + gearbox torque central fuselage crank left wing spar right wing spar connecting rod connecting rod Lift Forward thrust wake / airflow interaction Symmetric flapping matters Phase error, damaged spars, or wing deformation can create unwanted yaw or roll.
Shopify-ready no-script animation: motor rotation, crank motion, connecting rods, symmetric wing flapping, lift, thrust, and wake interaction.

The battery powers the receiver and motor. The gearbox adjusts the motor's high-speed rotation into a more useful speed and torque range for wing motion. The eccentric crank turns a circular input into a reciprocating movement. Connecting rods then push the wing roots so the left and right wings move in a repeated cycle.

In plain language, the aircraft is not a drone with decorative wings. It is a small flying mechanism where the wings are the moving system.

Crank-Rocker Linkage in a Flapping-Wing Flyer A crank-rocker linkage diagram showing how rotary motor motion becomes oscillating wing motion in a flapping-wing flyer. Crank-Rocker Linkage in a Flapping-Wing Flyer Rotary input becomes oscillating wing root motion. Diagram is conceptual, not product CAD. Motor + gearbox crank rotation left connecting rod right connecting rod upper stroke limit upper stroke limit lower stroke limit lower stroke limit Left wing spar Right wing spar Rotary input -> oscillating output Phase symmetry helps reduce unwanted yaw and roll.
A crank-rocker linkage can convert rotary motor input into symmetric wing root motion.

Why Symmetry Matters

Flapping-wing flight is sensitive to left-right balance. If one wing has more resistance, a different stroke angle, a twisted spar, or a damaged membrane, the flyer may roll, yaw, climb poorly, or drift toward one side. The remote controller can help guide the aircraft, but it cannot fully compensate for a badly distorted mechanical setup.

Before an indoor show, the operator should check the wing roots, rods, hinges, membrane condition, battery position, and trim response. A smooth, simple route is usually better than trying to force complex maneuvers in a public venue.

The Wingbeat Is More Than Up and Down

From a distance, the wings appear to flap up and down. In aerodynamic terms, each cycle also changes wing position, velocity, angle of attack, and membrane shape. A simplified wingbeat cycle includes a downstroke, a stroke reversal, an upstroke, and passive twist of the flexible wing.

Four clear panels show downstroke, stroke reversal, upstroke, and passive wing twist during a flapping-wing cycle. SIMPLIFIED FLAPPING-WING MOTION Wingbeat Cycle Downstroke, reversal, upstroke, and passive twist are separated so the motion path is easier to read. 1. Downstroke lift / thrust Main power stroke: wing motion contributes lift and forward thrust. 2. Stroke reversal angle changes The wing changes direction; local angle of attack shifts. 3. Upstroke recovery stroke Recovery stroke: reduce unwanted drag and negative lift. 4. Passive wing twist passive twist Flexible membrane and spar stiffness affect wing angle.
A simplified wingbeat cycle. Actual behavior depends on wing material, speed, weight, trim, and air movement.

During the downstroke, the wing sweeps through the air and typically contributes much of the useful lift and some forward thrust. At stroke reversal, the wing changes direction and the local angle of attack shifts. During the upstroke, the wing returns while the design tries to reduce unwanted negative lift and drag. The flexible membrane may twist passively under load, helping the wing find a more workable angle during the cycle.

This is why the design is not simply a question of making the wings move. The wing spar, membrane stiffness, wingbeat frequency, stroke amplitude, body weight, and center of gravity must sit in the same workable range.

Unsteady Aerodynamics: Useful Background, Not a Product Claim

Fixed-wing aircraft rely on forward speed through a relatively steady flow. Multirotors accelerate air downward with fast-spinning propellers. A flapping-wing flyer creates lift and thrust through changing wing motion, so the airflow around the wing changes throughout every stroke.

In research on insect and flapping-wing flight, terms such as leading-edge vortex, wake interaction, passive twist, pronation, supination, and clap-and-fling appear frequently. These concepts are useful for understanding why flapping wings can produce strong transient forces. They should not be presented as measured NiceUAV product performance unless a specific test supports that claim.

A conservative conceptual diagram for a bionic butterfly flyer article. It separates airflow, forces, vortex, wing motion, and wake interaction without presenting measured product data. CONCEPTUAL AIRFLOW MODEL Unsteady Aerodynamics A simplified view of changing flow around a flapping wing. Not wind-tunnel data or a measured product claim. Relative airflow Leading-edge vortex Lift Forward thrust Wing motion Wake interaction Technical background only - actual forces vary by wing material, speed, weight, trim, and venue airflow.
Conceptual illustration only, not wind-tunnel data. Actual aerodynamic behavior varies by structure, wing material, weight, and conditions.

A careful way to describe the product is this: a bionic butterfly flyer is inspired by natural flapping flight and uses flexible wings, repeated wing motion, and lightweight structure to create a lifelike low-speed indoor flight effect. Exact flight behavior depends on the specific version, setup, battery condition, operator skill, and venue.

Why It Works Well for Indoor Events

The strength of a bionic butterfly flyer is not speed, payload, wind resistance, or technical autonomy. Its strength is visual memory. A butterfly shape can fit a wedding, floral installation, spring theme, children's science activity, product launch, exhibition booth, museum workshop, or short video scene more naturally than a conventional drone.

For dark-stage performances, the lighted RC butterfly flyer can create a stronger visual trace. For daylight demos, classrooms, science museums, or close-up observation, a non-lighted configuration may show the wing pattern and mechanism more clearly. The right choice depends on lighting, ceiling height, audience distance, route planning, and the desired visual tone.

Venue and Operation Checklist

Event teams should treat the venue as part of the flight system. Before any public demonstration, confirm the room size, ceiling height, air-conditioning outlets, fans, stage lighting, hanging decor, LED screens, glass walls, audience distance, takeoff point, landing point, and recovery route.

The aircraft should be tested at low power before flight. Check that both wings move smoothly, the rods do not bind, the battery is secure, the controller is paired, the LEDs are stable if used, and the wing membranes have no obvious damage or deformation. Batteries should not be used if they are swollen, damaged, overheated, punctured, or abnormal in smell.

For public-facing events, a rehearsed simple flight path is usually the safest and best-looking option: gentle takeoff, smooth climb, large-radius turn, a visible pass across the audience's sightline, and controlled landing. Last-minute aggressive turns, flying close to people, or flying through complex decor are not recommended.

What to Confirm Before Ordering

Before choosing a configuration, ask for the exact version, wingspan, weight, battery type, charging method, expected flight time, control distance, package contents, spare wing options, LED option, customization feasibility, lead time, shipping method, and destination battery rules. These details can vary by product version and package, so they should not be mixed into one universal specification.

If the project is a wedding, exhibition, museum event, brand launch, or multi-unit performance, share the venue size, ceiling height, lighting condition, expected route, number of sessions, and desired visual effect. NiceUAV can then help narrow the configuration rather than guessing from a single product photo.

Related Reading: General Flyer Guide

NiceUAV also keeps a broader introduction to how a flapping butterfly flyer works. This article is more focused on the engineering logic: power transfer, linkage motion, wingbeat cycle, conservative aerodynamic background, and the practical checks that matter before an indoor demonstration.

Conclusion

A bionic butterfly flapping-wing flyer turns engineering into a visible moment. The motor, linkage, wing roots, flexible membranes, trim, and venue all work together to create a gentle indoor flight effect that feels more organic than a standard drone.

For indoor demonstrations, STEM programs, weddings, exhibitions, and brand events, the value is not that it replaces other aircraft. The value is that it makes flight look alive, understandable, and memorable.

To choose a suitable version, compare the RC butterfly flyer, the lighted RC butterfly flyer, or contact NiceUAV with your venue details and event plan.
